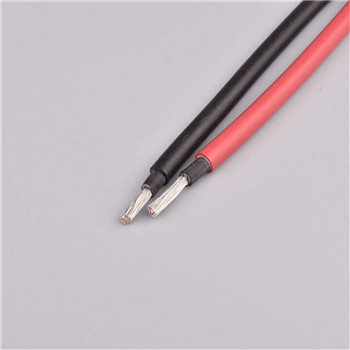

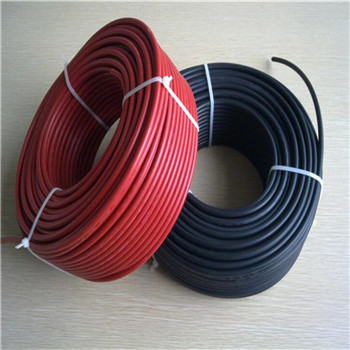

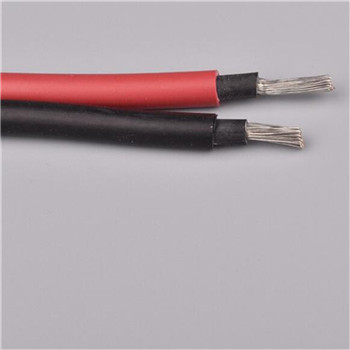

EN50618 H1Z2Z2-K PV 1500V DC 4mm 6mm PV1-f solar DC cable

Construction:
1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5.
2.Insulation: Polyolefin copolymer electron-beam cross-linked.
3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked.
4.Sheath Color: Black/Red/Blue or as per customer's request.

Inquiry Now

Description

Application:

For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter

Standard:

Cross-linked solar cables - type H1Z2Z2-K, certified according to EN 50618

Product features:

Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance

Cable Construction:

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.

Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.

Core Identification : Red, black or natural

Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.

Cable Colour : Black or Red,Blue

Benefits:

1.Reduction of flame propagation and of toxic combustion gases in the event of fire

2.Robust against mechanical impacts

3.For outdoor applications

4.Service Life: Expected life span ≥25 years

EN50618 H1Z2Z2-K PV 1500V DC 4mm 6mm PV1-f solar DC cable

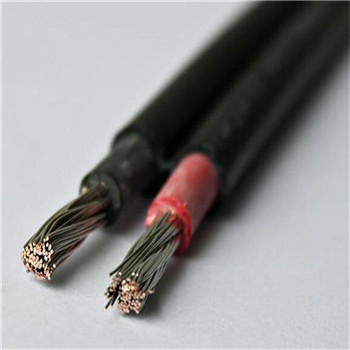

Single-Core Solar Cable
Cable Size (mm2)	Conductor Strand (mm)	Nominal insulation thickness (mm)	Nominal sheath thickness (mm)	Overall Dia (mm)	Approx. Weight (kg/km)	Max. Conductor Resis(20ºC) (Ω/Km)
1×4	56/0.30	0.8	0.8	5.8±0.3	68	4.95
1×6	84/0.30	0.8	0.9	6.6±0.3	94	3.3

Twin Core Solar cable
Cable Size (mm2)	Conductor Strand (mm)	Nominal insulation thickness (mm)	Nominal sheath thickness (mm)	Overall Dia (mm)	Approx. Weight (kg/km)	Max. Conductor Resis(20ºC) (Ω/Km)
2×2.5	49/0.25	0.7	0.8	5.0±0.3×10.6±0.3	100	8.21
2×4	56/0.30	0.8	0.9	6.2±0.3×13.8±0.3	143	5.09
2×6	84/0.30	0.8	1.0	7.2±0.3×15.3±0.3	194	3.39
2×10	84/0.40	1.0	1.0	9.0±0.3×19.2±0.3	320	1.95
